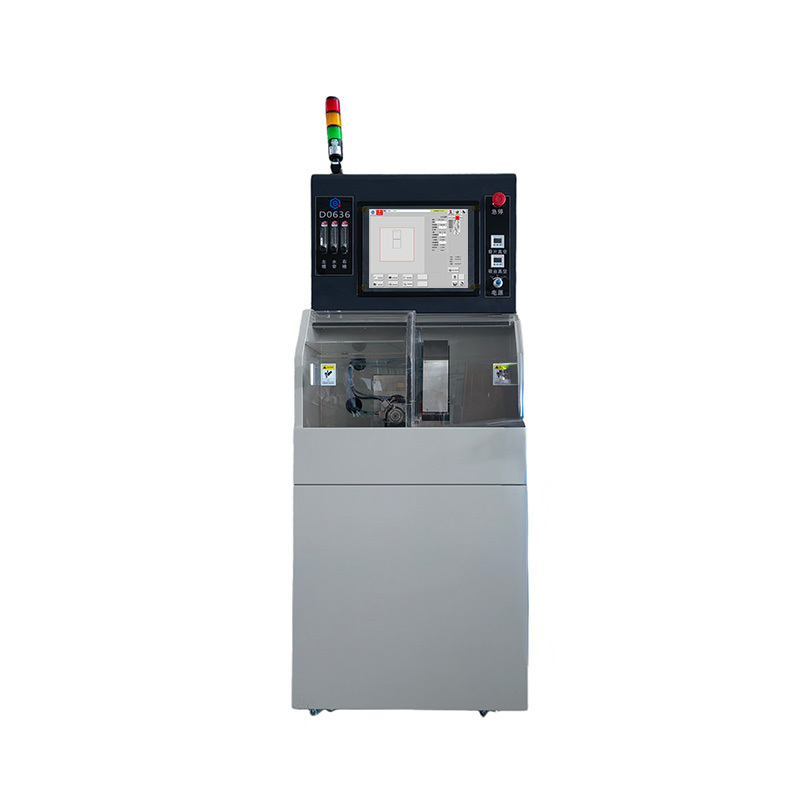

Extended-capability 6-inch platform with enhanced fiber optic and ceramic processing
The QSD0636 extends the 6-inch QSD platform with optimisations for advanced ceramic and fiber optic processing. It supports a wider range of blade configurations and includes upgraded chip handling for delicate substrates.
Vibration-free high-precision rotation for kerf consistency and minimal chipping.
High-accuracy linear positioning with closed-loop encoder feedback for repeatable results.
Optical alignment system for automated street recognition and offset compensation.
Configurable for silicon, GaAs, sapphire, ceramics, glass, LiNbO₃ and more.
Accepts Qisheng full blade range plus industry-standard hub blade specifications.
Free software upgrades for the lifetime of the machine — no hidden subscription fees.
All specifications are typical values. Custom configurations available on request — please contact our European technical sales team for project-specific requirements.
| Maximum wafer size | 6" (150 mm) |
|---|---|
| Spindle type | Air-bearing DC, extended |
| Spindle speed | Configurable (specifications on request) |
| Cutting accuracy | ±3 μm typical |
| XY stage type | Linear servo with optical encoder |
| Pattern recognition | Automatic optical alignment system |
| Power supply | 380 V AC, 3-phase |
| Compressed air | 0.5–0.7 MPa, dry & clean |
| Cooling water | DI water, filtered, recirculated |
| Compatible blades | Qisheng full range + third-party hub blades |
| Warranty | 12 months standard, lifetime software updates |
Specifications subject to change without notice. Please confirm latest values with sales when placing order.
The QSD0636 is deployed across multiple industries and substrate types:
The QSD0636 accepts the full range of Qisheng Precision dicing blades — resin-bond, metal-bond and electroformed — as well as third-party hub blades from major suppliers. Compatible accessories include ceramic vacuum chuck tables, diamond dresser boards and custom flanges manufactured in-house.
Get a personalised quotation, discuss your specific application requirements, or request a live demonstration. Our European technical sales team responds to all enquiries within one business day.
